Caméra rapide Full HD 1920*1080

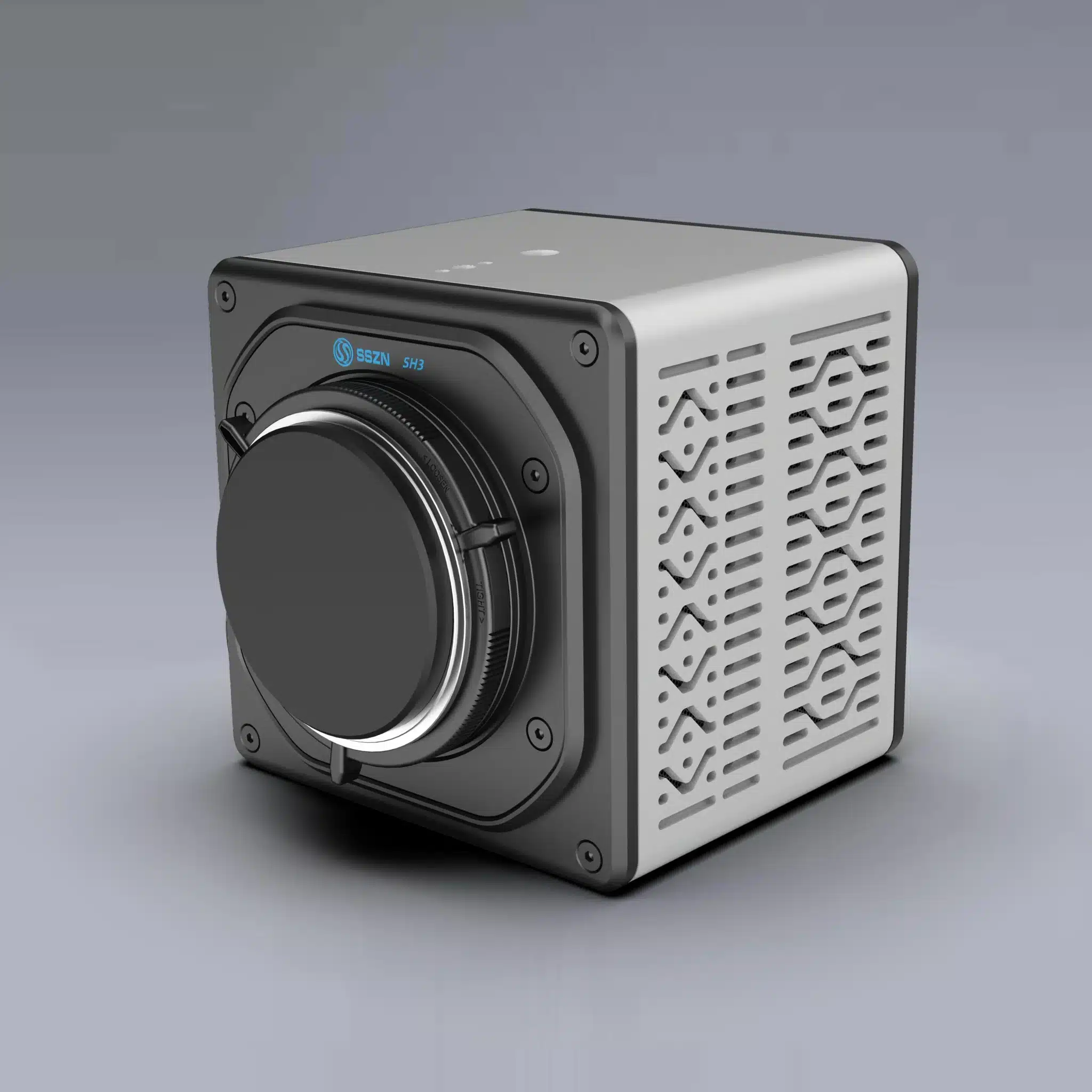

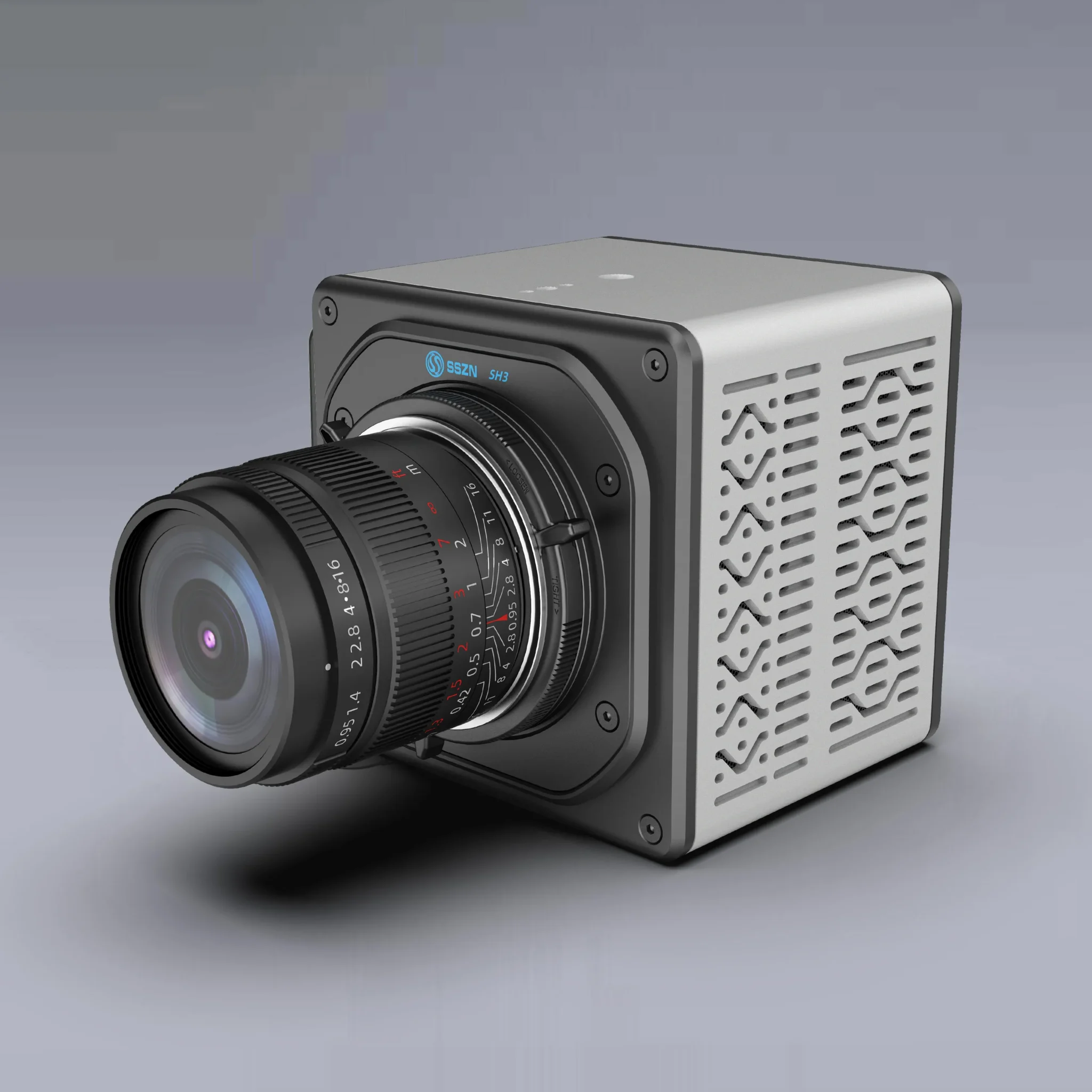

La caméra rapide SH3-204 fait partie de la série MINI de chez Since Vision. Cette caméra rapide est destinée à la recherche scientifique et aux applications industrielles (soudure, tests de chutes…).
Les caractéristiques principales de la caméra rapide SH3-204 sont les suivantes
- 3600 images par seconde en résolution Full HD 1920*1080
- Pixel : 7.8µm
- Temps d’exposition minimal : 100 ns
- 8 bits
Description de Caméra rapide SH3-204
SH3-204 is another masterpiece of MINI series for high-end scientific research and industry in SinceVision's intelligent high-speed camera family, which has a perfect balance of body size and heat dissipation through its 20-layer PCB stacking design and 10Gbps Serdes on-board interconnection technology. At the same time, thanks to the self-developed array parallel storage architecture, the maximum storage in the device can be expanded to 128GB.
| Resolution | Frame rate | Record time (memory) | |||
|---|---|---|---|---|---|
| 16GB | 32GB | 64GB | 128GB | ||
| 1920 x 1080 | 3600FPS | 2.3 s | 4.6 s | 9.2 s | 18.4 s |
| 1920 x 640 | 6000FPS | 2.3 s | 4.6 s | 9.3 s | 18.6 s |
| 1920 x 512 | 7500FPS | 2.3 s | 4.6 s | 9.3 s | 18.6 s |
| 1920 x 256 | 15000FPS | 2.3 s | 4.6 s | 9.3 s | 18.6 s |
| 1920×128 | 29800FPS | 2.3 s | 4.6 s | 9.3 s | 18.7 s |
| 1920×8 | 365000FPS | 3s | 6.1 s | 12.2 s | 24.5 s |
| Specification | |
|---|---|
| Model number | SH3-204 |
| Maximum resolution | 1920 x 1080 |
| Full shot speed | 3600fps |
| Maximum shooting speed | 365000fps |
| Minimum exposure time | 100 NS |
| Pixel size | 7.8μm |
| Standard memory | 16G, 32G, 64G, 128GB are optional |
| Extended memory | / |
| Dynamic range | 60dB |
| Analog gain | X 2, x 4, x 8 |
| Bit depth | 8bit |
| Shutter type | Global shutter |
| Color | Monochrome (M)/Colorful (C) |
| ROI | Support |
| Lens Mount | E interface, can be connected to F interface, C interface, EF interface |
| Data Interface | 10 Gigabit Ethernet, Adaptive Gigabit Ethernet |
| Sensitivity | ISO 23000(M); ISO 8000(C) |
| Fan Control | Supports on/off, adaptive speed based on temperature |
| Operating Temperature/Humidity | Standard -10~50℃, below 95% (without condensation), customizable -35~65℃ wide temperature version |
| Video Signal Output | Ethernet |
| Recording Mode | Start, End, Center, Random, Manual |
| Trigger Mode | Manual, IO, Image |

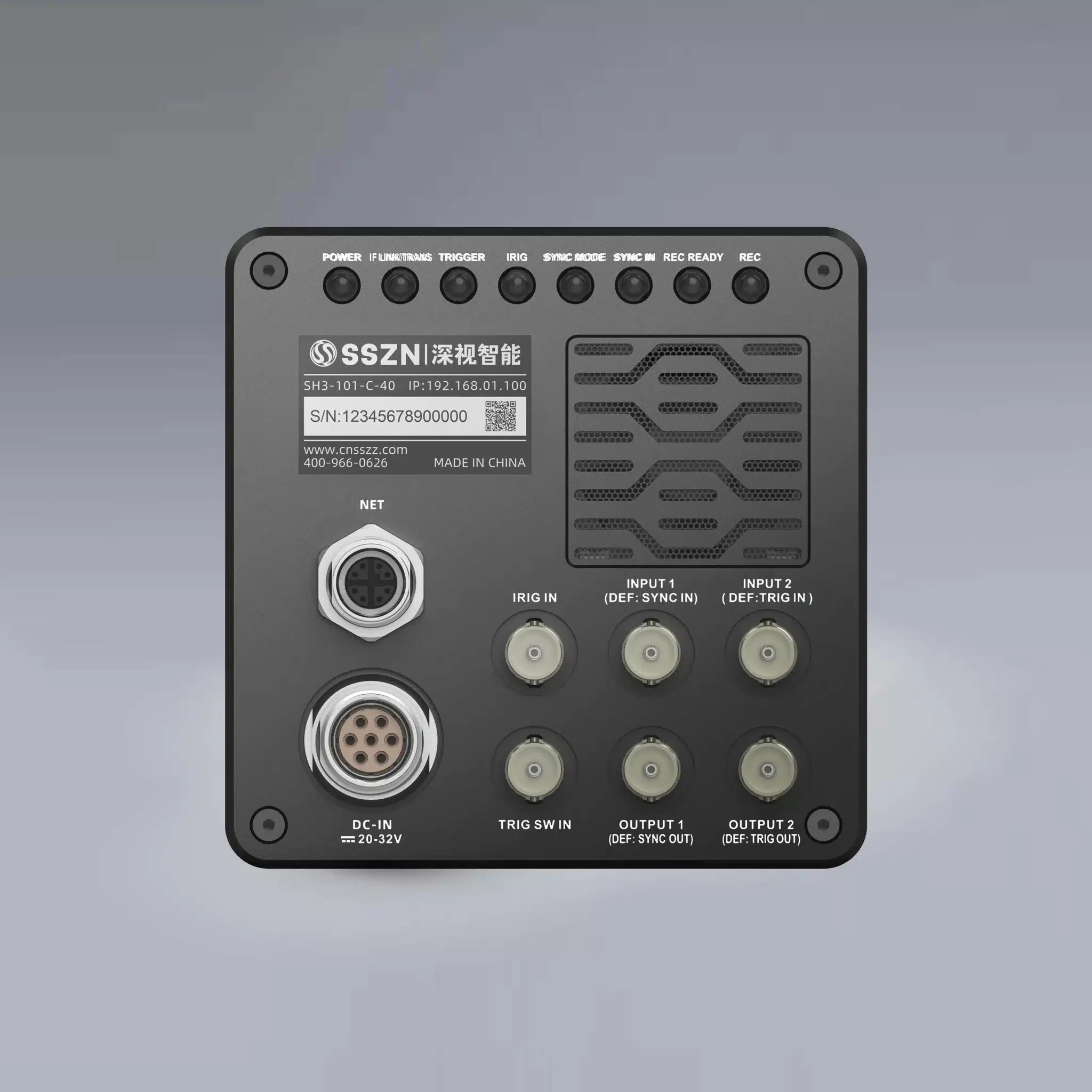

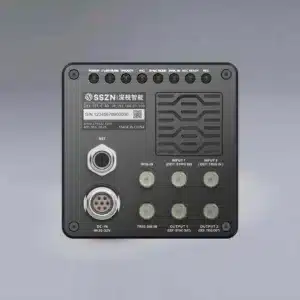

| External Signal | Input: trigger (TTL/switch) signal, synchronization signal, ready signal, event signal, IRIG Output: trigger, synchronization signal, ready signal |
| Power Supply | DC24V |
| Dimensions (excluding lens) | 90D × 110W × 110H, excluding raised parts |
| Weight | < 1.8kg |
| Power Consumption | < 30W |
| Standard Accessories | Power cord × 1. AC adapter × 1. Network cable × 1. Camera control software × 1. User manual × 1. Factory certificate of conformity × one |
| 1000fps (*1200fps) |
2000fps (*2200fps) |
3000fps (*3200fps) |
3600fps | 4000fps | 4500fps | 5000fps | 6600fps | 8000fps | 9500fps | 13800fps | 20000fps | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1280×808 | SH6-116 | |||||||||||
| 1280×864 | SHS-101 | SHS-103 | ||||||||||
| 1280×1024 | SH3-101 | SH3-103 | SH3-105 | SH3-108 | SH6-109 | SH6-113 | ||||||
| 1920×1080 | *SH2-201SHS-201 |
*SH2-202SHS-202 |
*SH2-203 | |||||||||
| 2048×1024 | SH6-201 | SH6-202 | SH6-204 | SH6-207 | ||||||||
| 2560×1920 | *SH3-202SH6-502S |
SH6-503S | ||||||||||
| 2560×2016 | SH6-501 | SH6-502 | SH6-504 | SH6-505 | ||||||||
| 4096×2048 | SH6-802 | |||||||||||
| 5120×4096 | SH6-2101 |
: SH3-MINI
: SH2-SMART
: SH6-Ultra High-Speed Series
: SH6-Ultra HD Series
: SH6-High-Speed HD Series
: SHS-Fast camera streaming
