Phase analysis in metallography :
Modules ASTM E562

Perfect Image's ASTM E 562 module enables volumetric fraction quantification using ASTM E562.

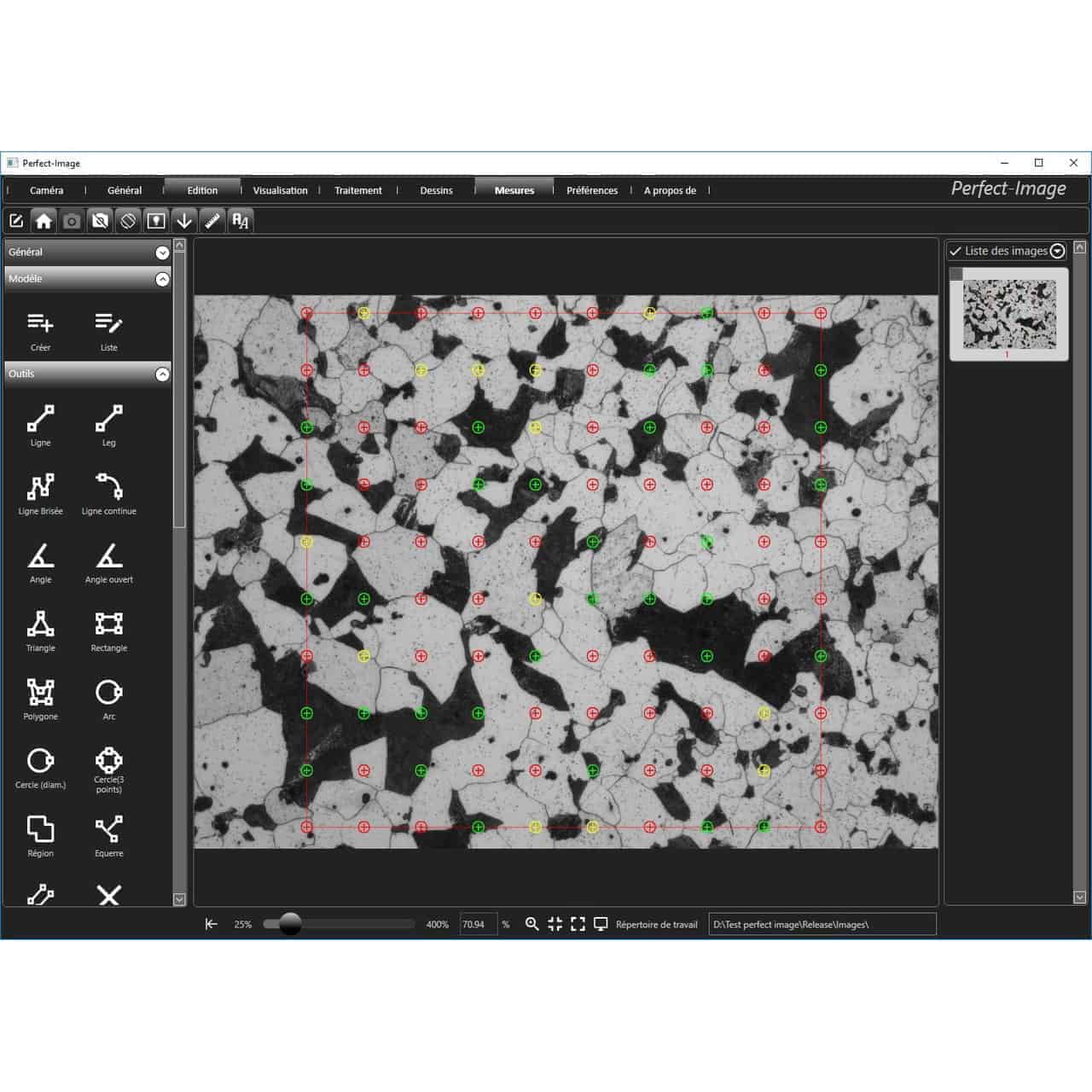

The module enables selection of a 9, 16, 25,49 or 100 point rectangular mask, and adjustment of the mask surface.

Appropriate thresholding / Automatic detection of centred and neighbouring points.

Volumetric fraction calculation / Supplementary confidence level calculations.

Cumulated calculations based on n successive images.

Data saved in Excel-compatible format (xls and xml).
