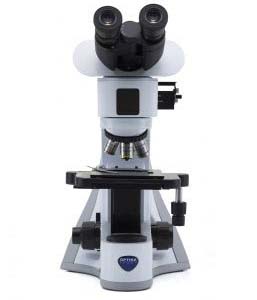

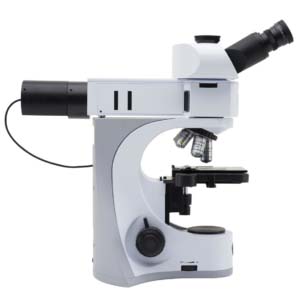

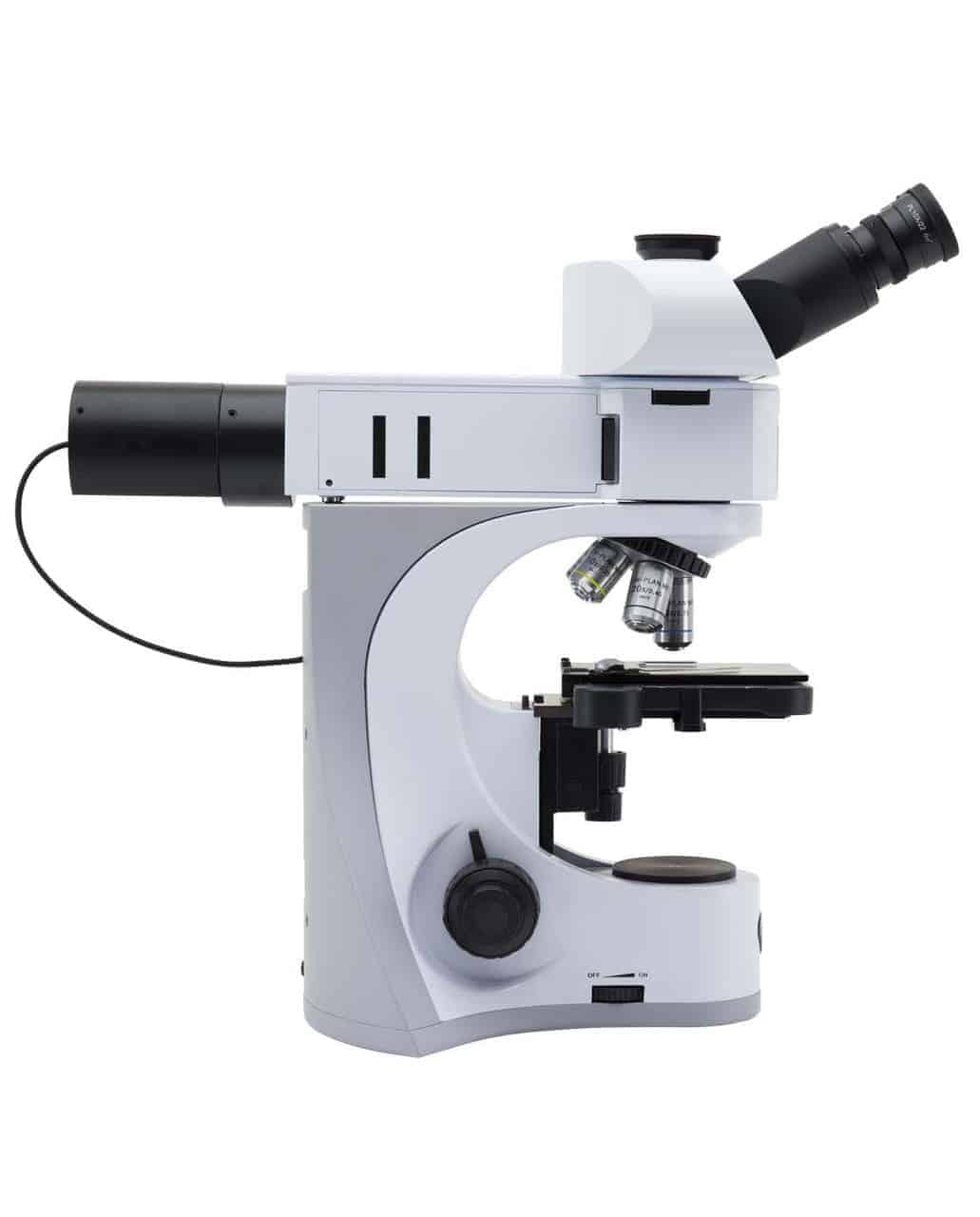

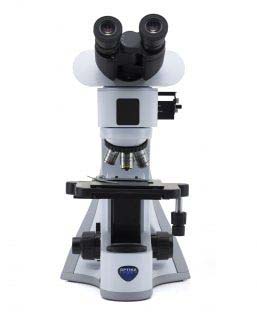

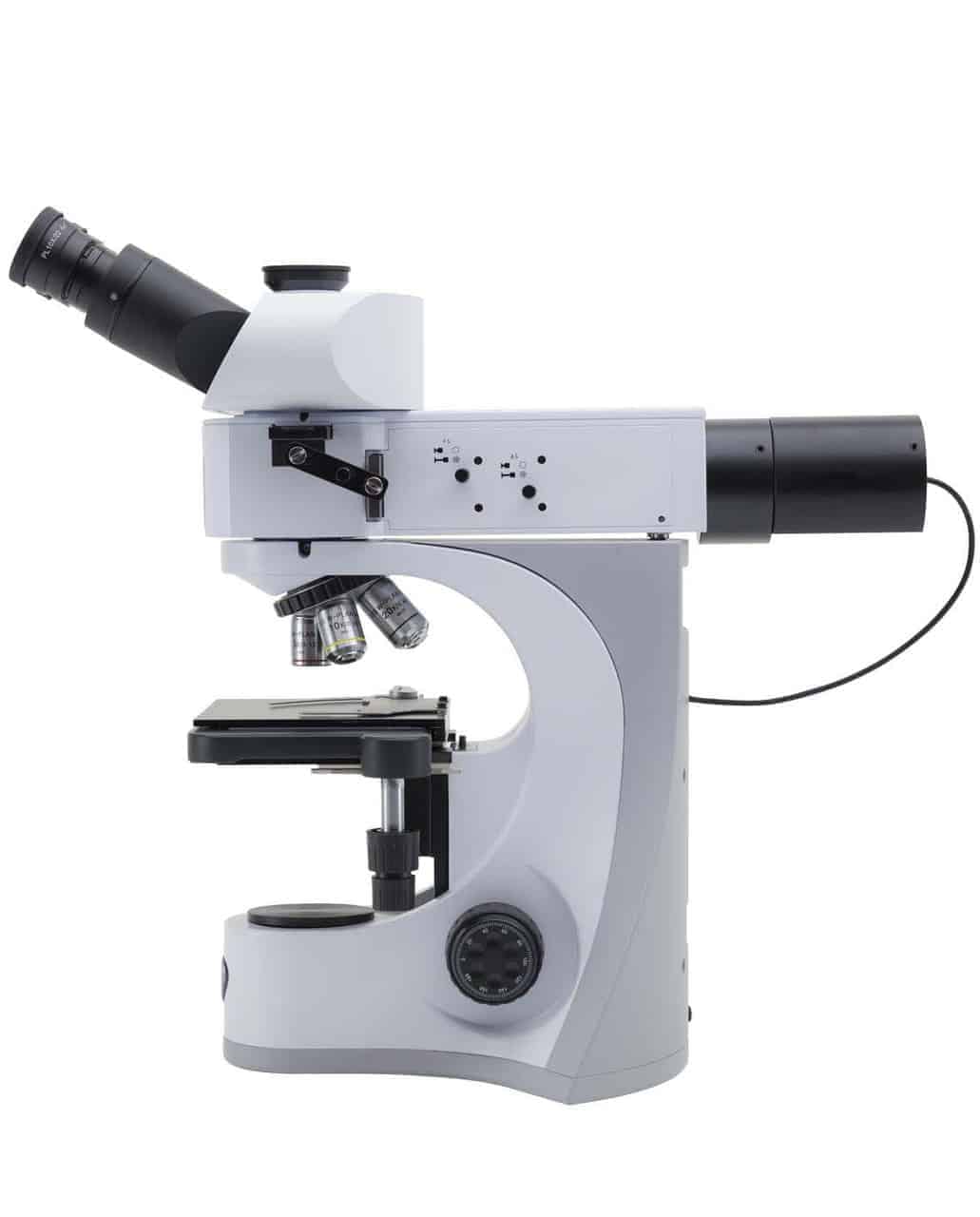

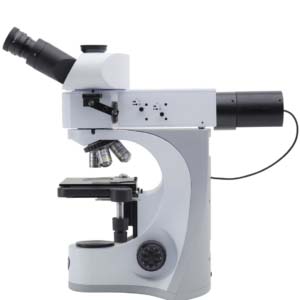

B-510MET metallurgical microscope

Home » Optical microscopy » Optika microscope » B-510MET metallurgical microscope

Upright metallurgical microscope for brightfield, darkfield and polarised light observation.

  • Magnification 50X, 100X, 200X and 500X.

Observation method:

  • Brightfield, simple polarised light, oblique illumination on incident light (darkfield)

Light source and filters:

  • X-LED8: white 8W LED (6.300 K), with brightness control.
  • Aperture and field diaphragms and oblique illumination.
  • Polariser and analyser.

External power supply: 100-240Vac / 6Vdc, multi-plug

About B-510MET metallurgical microscope

  • Head: Trinocular (fixed 50/50), 30 ° inclination, 360 ° rotation
  • Interpupillary distance: Adjustable between 50 and 75 mm.
  • Dioptric adjustment: On left eyepiece tube.
  • Eyepieces: WF10x / 22 mm, high eye-point and with rubber cups.
  • Nosepiece : Quintuple revolving nosepiece, rotation on ball bearings.

Objectives:

  • IOS W-PLAN MET 5x / 0.12
  • IOS W-PLAN MET 10x / 0.25
  • IOS W-PLAN MET 20x / 0.40
  • IOS W-PLAN MET 50x / 0.75

100x objective available as option

Specimen stage : Double layer mechanical stage. 233 × 147 mm, X-Y moving range 78 × 54 mm.

Focusing system :  Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
