Designed for industrial maintenance, research laboratories or engineering, the Fast Imaging IL3 high speed camera is equipped with a CMOS 1.3 megapixel (10 bit) sensor for capturing high resolution images. It enables you to optimise your production line and carry out preventive maintenance or repairs on your machinery. It is also designed for slow motion observation of animal movements, bio-mechanics, as well as many other applications (robotics, micro-fluids, mining…).
- High speed camera with 1.3-megapixel, 10-bit sensor
- 2 models:
- IL3-L – 800×600 resolution
- IL3-S – 1280×1024 resolution
- From 500 to 65 000 frames/second
- Excellent sensitivity
About High speed camera Fastec Imaging IL3

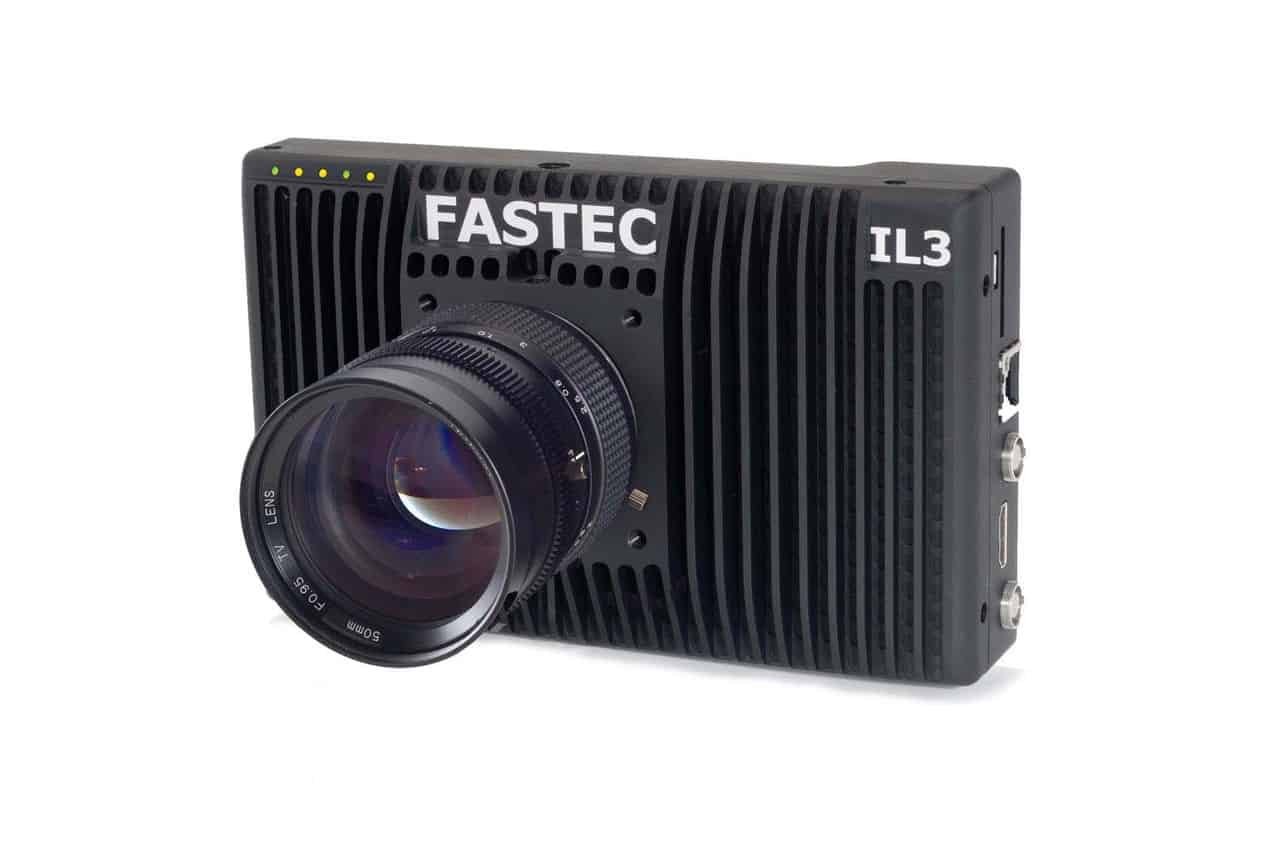

This high speed camera is compact and very light (1 kg), which makes it easy to position in the most confined spaces, inside production machinery or laboratory equipment. The video camera is provided with an advanced software package (available for Windows and Mac), with which to synchronise several cameras with precision, and trigger them as required. It is also possible to control your high speed camera through an integrated web interface, from the browser on a smartphone, digital tablet or PC.

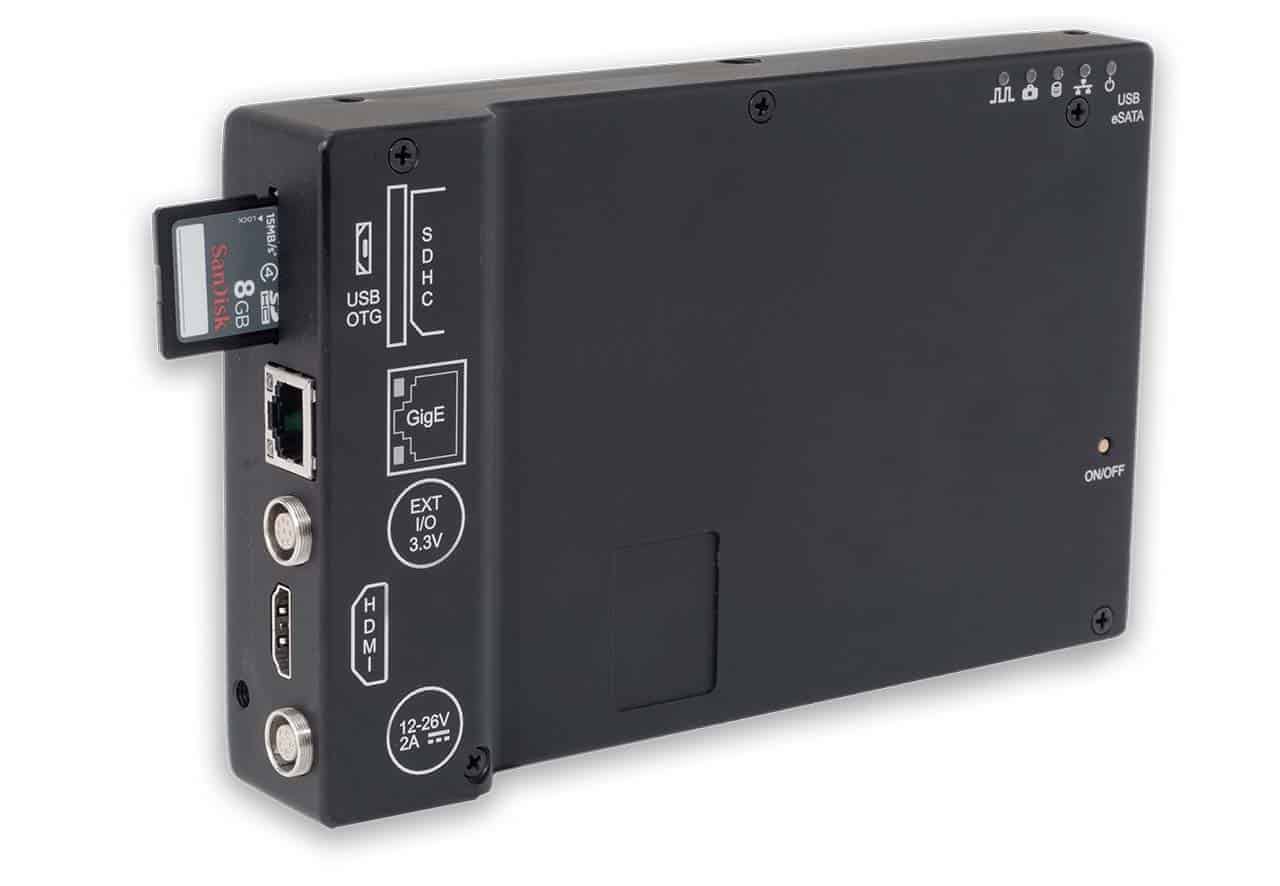

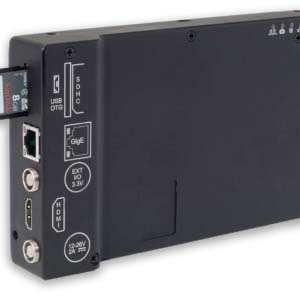

Available in two resolution modes (800×600 px et 1280×1024 px), the IL3 high speed camera can reach frame rates of 500 fps at full resolution and up to 65 000 frames per second at low resolution. It is also extremely sensitive, adapting to variable lighting conditions and providing sharp images even in semi-darkness. As with the other FASTEC IL digital cameras, it is fitted with a USB port, an Ethernet port and HDMI output so that an external monitor cab be connected. It is also possible to add an SD card for image storage.
As an option, it can be fitted with a 6-head cable for advanced synchronisation applications, but also with a WifI connection for remote wireless control. It is also possible to equip the camera with an internal SSD hard disk of up to 2 Tb, for recording extended sequences
- Compact design
- Built-in web interface for control via browser on PC, tablet, or phone
- Advanced PC software with multi-camera controls and batch downloads
- Precise synchronisation of multi-camera systems
- Multiple mass storage interfaces
- HDMI for external monitor
- Triggered by software, hardware, image or timed event
Options:
- Internal SSD up to 2TB
- SSD streaming modes for extended recordings
- WiFi connectivity for wireless remote control
- DVR compatible
| Name | IL3S | IL3L |
| Maximum Resolution | 1280 x 1024 | 800 x 600 |
| Max Res@ 500fps | 1280 x 1024 | 800 x 600 |
| Max Res@ 1Kfps | 800 x 600 | 800 x 600 |
| Max Res@ 2Kfps | 512 x 512 | N/A |
| Max Res@ 4Kfps | 416 x 312 | N/A |
| Max fps@ Min Res | 64 485 | 1 250 |
| Minimum Resolution | 48 x 32 | 48 x 32 |
| Sensor | 10-bit CMOS | 10-bit CMOS |
| Minimum Shutter | 2µs | 2µs |
| Maximum Pixel Rate | 668Mp/sec | 600Mp/sec |
| Long Record | Optional (D) | Optional (D) |
| Light Sensitivity Mono | 3 200 | 3 200 |
| Light Sensitivity Color | 1 600 | 1 600 |
| Pixel Size | 14µm Sq. | 14µm Sq. |
| Standard Memory | 4GB | 4GB |
| Memory Options | 8GB | 8GB |
| Auto Trigger | Yes | Yes |
| Video Output | HDMI | HDMI |
| Power Input | 10-26VDC | 10-26VDC |
| Battery Power | No | No |
| Backup Image Retention in Memory | No | No |
| Non Volatile Storage | SD, SSD, USB | SD, SSD, USB |
| Camera Control | FasMotion Web App | FasMotion Web App |
| Software License | Not Required | Not Required |
| IRIG Available | No | No |
| Ruggedized | No | No |
| Size (") | 7.25W x 4.4H x 1.8D | 7.25W x 4.4H x 1.8D |
| Weight | 1kg. | 1kg. |
